A time-calibrated molecular phylogeny of the precious corals: reconciling discrepancies in the taxonomic classification and insights into their evolutionary history



Seamount-associated faunas are often considered highly endemic but isolation and diversification processes leading to such endemism have been poorly documented at those depths. Likewise, species delimitation and phylogenetic studies in deep-sea organisms remain scarce, due to the difficulty in obtaining samples, and sometimes controversial. The phylogenetic relationships within the precious coral family Coralliidae remain largely unexplored and the monophyly of its two constituent genera, Corallium Cuvier and Paracorallium Bayer & Cairns, has not been resolved. As traditionally recognized, the diversity of colonial forms among the various species correlates with the diversity in shape of their supporting axis, but the phylogenetic significance of these characters remains to be tested. We thus used mitochondrial sequence data to evaluate the monophyly of Corallium and Paracorallium and the species boundaries for nearly all named taxa in the family. Species from across the coralliid range, including material from Antarctica, Hawaii, Japan, New Zealand, Taiwan, Tasmania, the eastern Pacific and the western Atlantic were examined.


The concatenated analysis of five mitochondrial regions (COI, 16S rRNA, ND2, and ND3-ND6) recovered two major coralliid clades. One clade is composed of two subgroups, the first including Corallium rubrum, the type species of the genus, together with a small group of Paracorallium species (P. japonicum and P. tortuosum) and C. medea (clade I-A); the other subgroup includes a poorly-resolved assemblage of six Corallium species (C. abyssale, C. ducale, C. imperiale, C. laauense, C. niobe, and C. sulcatum; clade I-B). The second major clade is well resolved and includes species of Corallium and Paracorallium (C. elatius, C. kishinouyei, C. konojoi, C. niveum, C. secundum, Corallium sp., Paracorallium nix, Paracorallium thrinax and Paracorallium spp.). A traditional taxonomic study of this clade delineated 11 morphospecies that were congruent with the general mixed Yule-coalescent (GMYC) model. A multilocus species-tree approach also identified the same two well-supported clades, being Clade I-B more recent in the species tree (18.0-15.9 mya) than in the gene tree (35.2-15.9 mya). In contrast, the diversification times for Clade II were more ancient in the species tree (136.4-41.7 mya) than in the gene tree (66.3-16.9 mya).


Our results provide no support for the taxonomic status of the two currently recognized genera in the family Coralliidae. Given that Paracorallium species were all nested within Corallium, we recognize the coralliid genus Corallium, which includes the type species of the family, and thus consider Paracorallium a junior synonym of Corallium. We propose the use of the genus Hemicorallium Gray for clade I-B (species with long rod sclerites, cylindrical autozooids and smooth axis). Species delimitation in clade I-B remains unclear and the molecular resolution for Coralliidae species is inconsistent in the two main clades. Some species have wide distributions, recent diversification times and low mtDNA divergence whereas other species exhibit narrower allopatric distributions, older diversification times and greater levels of mtDNA resolution.


Delimiting species is an old systematic problem, which continues to be controversial (e.g., [19]). If species delimitation estimates are based solely on mtDNA, groups can be influenced by the timing of speciation and the migration rates or dispersal capabilities of the species [10]. In addition, it is crucial to better understand species boundaries in deep-water groups. Estimation of divergence times in deep-sea faunas is a promising approach to understand events that have influenced both the evolution of these neglected marine organisms and the changes in this poorly explored environment.

Species are the fundamental units in many studies on systematics, biogeography, epidemiology, and conservation biology (e.g., [9, 11]). Species also constitute the unit for assessing biodiversity and therefore accurate identification of individuals is crucial in many areas of inquiry. In systematics and biogeographical analyses, species are frequently used as terminal taxa in phylogenetic analysis. However, relatively little effort has focused on the process of identifying and delimitating such species. In addition, there are no universal criteria by which species should be delineated and identified, and both, non-tree based (measures of gene flow) and tree-based approaches have been applied [4, 6, 7, 1215].

In octocorals, species identification has traditionally been based on external morphology (axis, branching pattern, calyx morphology, polyp arrangement, surface texture, coloration, etc.) and sclerite composition [1620]. The taxonomy of precious corals is particularly enigmatic, because many species were described based on small deep-sea fragmentary samples, limiting our understanding of their real intra-colony and intraspecific variation [21]. In addition, some descriptions are imprecise and the whereabouts of the type material remains unknown.

Molecular species delimitation usually uses tree-based methods to assess monophyly [1] or more recently have applied genealogical-based coalescent methods (e.g., [25, 9, 11, 2224]). Tree-based methods reconstruct the evolutionary relationships among individuals and look for reciprocal monophyly, but are often dependent on the method/model of tree inference and it is not uncommon that single-gene trees differ from concatenated gene-based inferences. Thus, concatenation of markers and multilocus coalescent approaches have been favoured more recently (e.g., [23, 25]). Species-tree inference and estimation of divergence times from a single locus (often a mitochondrial gene) and multi-individual data are possible in a species tree framework [26], although these analyses are usually carried out using multilocus datasets [27]. However, coalescent-based approaches can show signal for lineage divergence despite the lack of monophyly in gene-trees, which can be common in recently diverged species [3]. Time-calibrated phylogenies have also the advantage of using general speciation models, which examine species boundaries from sequences by identifying evolving lineages bridging the coalescent with speciation in the phylogeny [5].

The particular interest on Coralliidae phylogenetics responds also to the intricate evolution of its axial characters and the questionable validity of its two currently recognized genera, in addition to aspects of their biology and conservation, as most species are of commercial interest for the jewelry industry. The diversity of colonial forms among the various species of precious corals corresponds with various shapes of the supporting axis. Branching varies from sparse, in Corallium abyssale Bayer, to profuse, in Paracorallium japonicum Kishinouye. Terminal branchlets vary from stout and blunt to slender and delicate. The surface of the axis may be smooth or distinctly marked by narrow longitudinal grooves underlying the coenenchymal canals and some species include pits [28, 29]. Coenenchymal sclerites are basically of the radiate type, slender rods and smooth or rough double clubs [3032].

Corallium and Paracorallium, the two accepted Coralliidae genera, comprise 17 and 7 described species, respectively. Most have been documented from the Pacific Ocean and only two species are from the eastern North Atlantic [21, 29, 31]. Coralliidae is closely related to Paragorgiidae [3335], whose members lack a supporting axis. The most complete molecular phylogenetic hypothesis for Octocorallia [36] shows that Scleraxonia, the suborder containing Coralliidae, is polyphyletic. To date, limited molecular systematic studies of Coralliidae [33, 35] have provided evidence for major discrepancies between phylogeny and generic taxonomy. Additional studies of precious corals include genetic surveys, radial growth rates, dating, and recruitment estimates [37, 38], but little is known about their phylogenetic relationships. Furthermore, all precious corals are currently threatened not only by the jewelry industry but also the trawling activity on seamounts and other deep-sea rocky habitats [3942]. However, not all precious coral species have been included in the CITES list (the Convention on International Trade in Endangered Species of Wild Fauna and Flora) due to difficult identification and uncertainty about population status.

In this study, before understanding the phylogenetic relationships within Coralliidae, it was important to delineate species boundaries with particular interest in the precise membership of the type species of the family, Corallium rubrum Linnaeus, and to re-evaluate the validity of the genus Paracorallium Bayer & Cairns. Here, we provide an extended phylogeny of Coralliidae based on a large geographical and broad taxon sampling and using data from five mitochondrial regions. We use these data for a genealogical approach to assess the significance of clustering and lineage divergence and delimit species of precious corals.


Concatenated analysis

The phylogeny obtained from the concatenated approach for cytochrome c oxidase subunit I (COI), 16S ribosomal RNA (16S rRNA), NADH dehydrogenase subunit 2 (ND2), and NADH dehydrogenase subunits 3–6 (ND3-ND6) mtDNA, splits basally into two supported clades (Figure 1). Clade I is further divided into two subgroups, Clade I-A including Corallium rubrum, the type species of the genus, nested within a small group of Paracorallium species (P. japonicum and P. tortuosum Bayer) and C. medea Bayer. Clade I-B includes several Corallium species (C. abyssale, C. ducale Bayer, C. imperiale Bayer, C. laauense Bayer, C. niobe Bayer, and C. sulcatum Kishinouye) but several species sampled from multiple localities appear polyphyletic or paraphyletic. Such is the case of C. imperiale and C. laauense, which have a wide geographical distribution throughout the Pacific Ocean. Corallium imperiale has been reported from Hawaii, New Zealand, New Caledonia, Antarctica and California and C. laauense from Hawaii, New Zealand, Tasmania and Antarctica (Figure 1). Many of these widely distributed morphospecies, however, showed no meaningful biogeographic structure.

Figure 1

Bayesian analysis of concatenated mtDNA. Bayesian analysis of the concatenated dataset (COI+16S rRNA+16S-ND2+ ND3-ND6, 2263 bp, n = 129) performed with BEAST. Each node in the tree is labeled with its Maximum Likelihood boostrap (left) and Bayesian posterior probabilities (right) if it is greater than 50% or 0.5 respectively. The blue bars represent the 95% HPD interval for the divergence time estimates, which is only available for nodes with posterior probability <0.5. The red points represent the calibration node. The arrow indicates the position of the type species of the family, Corallium rubrum. Sampling localities are abbreviated as ALA: Alaska, ANT: Antarctica, BAH: Bahamas, CA: California, FL: Florida, GM: Gulf of Mexico, HI: Hawaii, JAP: Japan, NC: New Caledonia, NZ: New Zealand, PAL: Palau, TAS: Tasmania, TWA: Taiwan. Figures included, A. Sclerites of C. laauense, B. Axis of C. laauense, C. Autozooid polyps of C. niobe, D. Holotype colony of C. imperiale showing axis with typical tunnels and the commensal polychaets. E. Colony of C. abyssale showing typical cylindrical autozooids, F-G Colony and axis of C. japonicum, H. Colony of C. rubrum, I. Colony of C. kishinouyei, J. Colony of, K. Colony of P. tortuosum, L. Colony of C. konojoi, M. Axis and sclerites of C. konojoi. Misidentifications in the original material are presented in parentheses.

Clade II includes species of Corallium and Paracorallium with hemispherical autozooids, an axis with grooves and without polyp rods (C. elatius Ridley, C. kishinouyei Bayer, C. konojoi Kishinouye, C. niveum Bayer, C. secundum Dana, Corallium sp.), others with pits (Paracorallium nix Bayer, P. thrinax Bayer & Stefani and Paracorallium spp.) and characterized by sufficient morphological resolution, reflecting on the phylogenetic pattern of these species, all monophyletic and most with allopatric distributions. For the sympatric species C. konojoi and C. elatius are restricted to Japan and Taiwan, and are sister species, but C. secundum, C. niveum and C. kishinouyei, endemic to Hawaii, appear in three separate clades (Figure 1).

Species tree and divergence times

Phylogeny of the mtDNA obtained from the calibrated species-tree approach also identified the same main clades, including Corallium rubrum within Clade I-A, and a Clade I-B comprising the species with long rod sclerites, cylindrical autozooids and smooth axes (Figure 2). The relationships among coralliid species of Clade II differed slightly in the species-tree when compared with the concatenated gene-tree (Figure 1). Diversification time of Clade I-B was more recent in the species tree (18.0-15.9 million years ago-mya) than in the gene tree (35.2-15.9 mya). In contrast, the diversification times for Clade-II were more ancient in the species tree (136.4-41.7 mya) than in the gene tree (66.3-16.9 mya).

Figure 2

*BEAST species-tree derived from mtDNA. Most probable species tree of Coralliidae from *BEAST. Each node in the tree is labeled with its Bayesian posterior probabilities if it is greater than 0.5. The blue bars represent the 95% HPD interval for the divergence time estimates, which is only available for nodes with posterior probability <0.5. The arrow indicates the position of the type species of the family, Corallium rubrum.

Species delimitation

A traditional taxonomic study of Clade II delineated 11 morphospecies that were congruent with the general mixed Yule-coalescent (GMYC) model (Figure 3), but resolution within Clade I was lacking (Figure 4). The single-threshold model yielded a total of 16 ML clusters (=GMYC species), including Clades I and II, and the time at which the speciation-coalescent transition occurred was ca. 4.13 mya. The seven GMYC species for Clade II are congruent with the morphological diagnosis for C. kishinouyei, Corallium sp. 1, C. secundum, C. niveum and P. thrinax, and two cases of merging for C. konojoiC. elatius and Paracorallium sp.−P. nix (Figure 3).

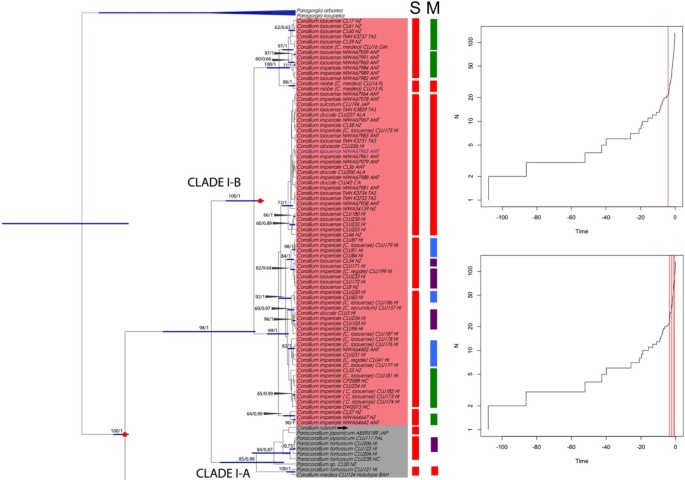

Figure 3

GMYC model for the mtDNA data for Clade I. Phylogenetic tree (left), single (S) threshold likelihood solutions to the GMYC model (center), and lineage-through-time plot (right). Log number of lineages (N) vs. time (mya) graph from GMYC analysis based on a Bayesian tree. The threshold between intra- vs. inter-species variation is indicated by a vertical red line. The single threshold GMYC result is indicated for a single line (4.13 mya: red bars). The multiple-threshold GMYC result (lower plot) reflects the results of four thresholds (3.71 mya: red bars, 2.56 mya: green bars, 1.48 mya: blue bars, and 0.68 mya: purple bars).

Figure 4

GMYC model for the mtDNA data for Clade II. Phylogenetic tree (left), single (S) and multiple (M) threshold likelihood solutions to the GMYC model (center), and lineage-through-time plots (right). Log number of lineages (N) vs. time (mya) graph from GMYC analysis based on a Bayesian tree. The threshold between intra- vs. inter-species variation is indicated by vertical red lines. The single threshold GMYC result (upper plot) is indicated for a single line (4.13 mya: red bars). The multiple-threshold GMYC result (lower plot) reflects the results of four thresholds (3.71 mya: red bars, 2.56 mya: green bars, 1.48 mya: blue bars, and 0.68 mya: purple bars).

The multiple threshold model yielded more ML clusters (22 GMYC species), and the multiple times at which the speciation-coalescent transition occurred was 3.71, 2.56, 1.48, and 0.68 mya (Figures 3, 4). The eight GMYC species for Clade II, delineated from the multiple-threshold model, were less congruent with the morphological diagnosis in general. In Clade I, the resolution of the species was incomplete and the GMYC delimitation was highly incongruent (Figure 4).


Octocoral species are often described on the basis of diagnostic sclerites and external morphology, but these characters may show phenotypic plasticity, varying within colonies, among habitats or along the life cycle of the colony [43]. Phylogenetic studies in octocorals have showed a lack of resolution using mitochondrial markers, with COI and MSH1 barcodes identifying ca. 70% of morphospecies correctly [44]. Our study presents the most comprehensive phylogeny for the precious corals to date. The study encompasses the geographical range of the family and the majority of recognized species (17 species plus five additional morphospecies; Additional file 1) and includes multiple individuals for 14 of these species from their known distribution ranges. Analyses of these data recover several well-resolved clades in Coralliidae, and many terminal relationships are supported in Clade II. The use of up to five mitochondrial regions showed discordant results in certain parts of the tree, especially for the species in Clade I. The two approaches (concatenated gene-tree vs. species-tree) produced incongruent topologies, but both hypotheses reject the taxonomic status of the coralliid genera, showing that they are not reciprocally monophyletic.

Coralliidae is closely related to Paragorgiidae according to both nuclear and mitochondrial sequences [33], their sclerites are clearly homologous, and a third monotypic family (Sibogagorgiidae) was erected to accommodate a single species [17, 45]. Paracorallium, according to mitochondrial data, is not a valid taxon. Uda et al. [35] justified the validity of the two genera of Coralliidae based on the genetic distance between P. japonicum and C. konojoi and differences in their mitochondrial gene arrangements, but our study shows that those differences are meaningless when the genera are densely sampled. Furthermore, they could not include the type species of each genus, Corallium rubrum (for the genus Corallium) and C. tortuosum (for Paracorallium). Furthermore, no species from Clade I-B were included, and divergence and anagenesis are no longer used to justify higher taxonomic ranks, in the absence of monophyly. Our results, including the type species for both genera, clearly show that the type species of Paracorallium is closer to C. rubrum than to some other Paracorallium species. Thus we synonymize Paracorallium new synonymy with Corallium.

The Corallium laauenseimperiale clade (I-B) has wide geographical distribution throughout the Pacific Ocean and probably high dispersal abilities. Their colonies branch mainly in one plane, and are irregularly pinnate, with short terminal branchlets arising vertically from the principal branches, and forming arcades or galleries often inhabited by polychaete annelids [21]. The autozooids form cylindrical calices with distinct longitudinal grooves and the coenenchyme sclerites are characterized by 8-radiates in the type material of both species but some differences exist in the presence of double-clubs and the rind and axis coloration [21]. Gray (1867) proposed the use of three genera based on the form of verrucae (autozooid) and the branching pattern: Corallium, for C. rubrum; Pleurocorallium Moroff, for C. secundum and Hemicorallium Gray for C. johnsoni[46]. In the hypothesis here presented Clade I-B included species related to C. johnsoni and grouped by Bayer (1956) in a uniform group characterized by a “long spindles in the autozooid verrucae = rods” (C. johnsoni, C. abyssale, C. laauense, C. imperiale, C. niobe, C. sulcatum, C. ducale, C. halmaheirense, C. tricolor, C. maderense) [21]. For these reasons we resurrect the genus Hemicorallium for Clade I-B characterized by presence of rods and cylindrical autozooids.

In general, the species of Clade I-B (C. abyssale, C. laauense, C. imperiale, C. niobe, C. sulcatum, C. ducale) are very similar in morphology and have been separated by little differences in the calyx’s morphology, the absence/presence of the radiate-sclerites or double-clubs, and coloration. The observed low resolution in mitochondrial loci for these species could be the result of limited genetic variation induced by gene flow, recent diversification times (18.0-15.9 mya or 35.2-15.9 mya depending of the approach), incomplete lineage sorting, or hybridization, among other factors, but could also be explained by phenotypic plasticity in a broadly distributed species complex [43].

In contrast, the species of Clade II exhibit older diversification times (136.4-41.7 mya or 66.3-16.9 mya depending of the approach), more restricted geographical distributions, and limited dispersal abilities, implying a strong role for geographic isolation. In addition, the establishment of discrete and monophyletic clusters is a general consequence of sufficient time for speciation [10]. A similar case of discordance between sister clades has been reported for terrestrial earthworms in the genus Hormogaster[47, 48]. A testable explanation is that the mode and tempo of morphological diversification significantly increased in Clade I as a product of larger effective population sizes, wider geographical and ecological distributions, and, as a consequence, higher selective pressures acting on a morphologic continuum [49]. Such process can be expedited either if the ancestral population of Clade I had larger phenotypic plasticity or if Clades I and II have dramatically different reproductive strategies (e.g., brooders vs. broadcast spawners). Testing either scenario awaits significantly increased, and precisely designed, new deep-sea sampling.

Diversification times estimated with concatenated gene-tree vs. species tree approaches showed significant overestimation within the former approach. This may be common especially for groups with recent divergence events [50], which is consistent with the general pattern of recent divergence times seen in other species trees [26]. Moreover, species delimitation of precious corals should rely on diverse sets of data, including morphological characters and proxies of reproductive isolation (e.g., genetic divergence and reproductive strategy) hopefully in association with biogeographic patterns. Analysis of genomic data and population genetics using fast-evolving markers such as simple sequence repeats (SSRs) and single nucleotide polymorphisms (SNPs) [6, 7, 12, 51] should provide additional valuable information for delimiting recently diverged species.


The phylogenetic hypotheses recovered by mtDNA concatenated gene trees and species trees reject the taxonomic status of both currently recognized coralliid genera, but it is compatible with the genus Hemicorallium, as proposed by Gray (1867), as sister to Corallium. Paracorallium is polyphyletic and nested within Corallium, and thus it is here synonymized with Corallium, the type genus of the family. We further re-erect the genus Hemicorallium, to include the species (C. johnsoni, C. abyssale, C. laauense, C. imperiale, C. niobe, C. sulcatum, C. ducale, C. halmaheirense, C. tricolor, C. maderense). In addition, species delimitation in Clade I-B (species with long rod sclerites, cylindrical autozooids and smooth axes) remains unclear. Molecular resolution of species within Coralliidae differs among Clades I and II. Dated phylogenies indicated that species from Clade I have diverged recently while maintaining gene flow, hybridization or incomplete lineage sorting. This approach is also useful to understand the poor resolution of some species with broad distributions and recent diversification times (Clade I-B) vs. species with allopatric distributions and older diversification times (Clade II) that showed greater levels of mtDNA resolution and clustering.


Tissue collection and DNA extraction

Coralliidae specimens were primarily obtained at the National Museum of Natural History, Smithsonian Institution, Washington D.C., which hosts the most complete collection with approximately 272 lots. Additional material from NIWA Invertebrate Collection (National Institute of Water & Atmospheric Research) and Te Papa Tongarewa, Wellington, New Zealand [7], and recently collected samples from institutions from different areas such as CSIRO (Tasmania) and Sinica Academy (Taiwan) were included [11]. Octocoral specimens were identified through examination of colonial features under a dissecting microscope and dissection of sclerite layers, with observations with both a compound microscope and scanning electron microscopy (SEM) (unpublished data). Genomic DNA extraction was performed with an automated DNA isolation system (AutoGenprep 965, AutoGen Inc.) using the protocol with phenol/chloroform phases and precipitation with ethanol according to modifications made by Herrera et al. [33], or with the DNeasy® Tissue Kit (QIAGEN Inc., Valencia, CA, USA) for some tissue samples (4–5 polyps).

DNA sequencing

For gene amplification, primers designed for COI, 16S rRNA, 16S rRNA-ND2, and ND3-ND6 sequence regions were used [33, 52]. The amplified products were purified using the Exonuclease-I/Shrimp Alkaline Phosphatase (ExoSAP-ITTM, USB Corp.) method. Purified PCR products were sequenced with an automated ABI 3730 XL capillary sequencer using a BigDye Terminator v3.1 kit (Applied Biosystems, Foster City, CA) and purification was done with Sephadex G-50 (Sigma- Aldrich Corp.). Complementary chromatograms were assembled and edited using Geneious Pro v.4.8.5 (Biomatters Ltd., NZ). Nucleotide sequences were aligned for each gene using MUSCLE [53], via the CIPRES portal [54]. For “problematic samples” (i.e. specimens not grouping as expected in the molecular tree), sequencing was performed in three labs (Biommar Lab-UniAndes, Giribet Lab-Harvard University and Museum Support Center-Smithsonian Institution) using different extraction protocols (QIAGEN and automated) and cross-contamination was discarded.

One hundred and twenty-six specimens were sequenced for a fragment of COI, 16S rRNA, and 16S rRNA-ND2. Sequences of the ND3-ND6 fragment were incomplete for six specimens (see Additional file 1). Sequences for Corallium rubrum (only 16S rRNA and COI were available), C. konojoi (AB595190), Paracorallium japonicum (AB595189) and the outgroup Paragorgia arborea L. and P. kaupeka Sánchez were retrieved from GenBank. Aligned mtDNA sequences were 519 bp for COI, 355 bp for 16S rRNA, 763 bp for 16S rRNA-ND2, and 626 bp for ND3-ND6. All sequences have been deposited in GenBank [11].

Phylogenetic analysis

Concatenated analysis

Tree reconstructions were conducted using Maximum Likelihood and Bayesian inference. Best-fit models of nucleotide substitution were selected for each of the five genes using JModeltest [55] under the Akaike information Criterion (AIC) (COI: HKY+Gamma+I, 16S: GTR+ gamma, ND2 and ND3-ND6: HKY+I). Bayesian analysis was performed using the software package Bayesian Evolutionary Analysis by Sampling Trees (BEAST) version 1.7.4 [56, 57]. Divergence dates were estimated from the mtDNA data concatenated to compare with species-tree based estimates using *BEAST part of the BEAST version 1.7.4 and assuming a partitioned scheme employing a relaxed uncorrelated lognormal clock and the Birth-Death process with a uniform prior on birthdate rate as tree prior [56]. Parameters and trees were estimated from two independent runs with four partitions (COI, 16S, ND2, ND3-ND6) using four Markov chains (MCMC) with a chain lengths of 50 millions of generations and default heating values. Trees and parameters were sampled every 1000 generations and the first 10% of the samples were discarded as burn-in. Summary information about sample trees was produced using LogCombiner and TreeAnnotator version 1.7.4. To check the performance of BEAST output for an adequate convergence and mixing quality of all parameters was used Tracer version 1.5 [58] by examining of the loglikelihood values across generation number. In addition, Tracer was used to confirm that post-burn-in trees yielded an effective sample size (ESS) of <200 for all parameters. A fossil of Corallium dated to 85.3-84.3 mya based on the occurrence in the Campanian-Maastrichtian of Ukraine [59] and the oldest coralliid fossil known so far was used as the calibration point at the Coralliidae crown. A LogNormal distribution with 95% confidence interval covering this constraint (84.3-111.1 mya) was used for the calibration prior, using offset: 84.3, standard deviation in log space: 2.0 and mean in log space: 0. A second calibration point was included in the Clade I-B, using fossils from the Lower Miocene (Burdigalian) of the Turin Hills (northern Italy) and Capo Milazzo, Sicily, southern Italy (Pleistocene) with typical tunnels most probably produced by commensal worms like the species in this Clade (e.g. C.imperiale) [60]. We used the oldest fossil known from lower Miocene to calibrate the Clade I-B (20.4-15.9 mya). A LogNormal distribution with 95% confidence interval covering this constraint (42.7-15.9 mya) was used for the calibration prior, using next values for the offset: 15.9, standard deviation in log space: 2.0 and mean in log space: 0. We understand the limitations and uncertainties of dating with a few calibration points [61, 62]. Moreover, we used this calibration to know the relative divergence among clades before that absolute time.

ML trees were estimated by means RAxML 7.3.2 using GTR nucleotide-substitution model + gamma distribution and GTRCAT model to be used during the inference of the best tree and bootstrapping phase respectively [63, 64] via the CIPRES portal [54]. Bootstrap support for the mtDNA-concatenated tree was assessed with 1000 replicates that were specified automatically with the Majority Rule criterion.

Species tree and divergence times

Species-tree analyses and divergence time estimates from a multilocus (four partition of mitochondrial genes) and multi-individual (< 2 individuals per species) data set followed the *BEAST approach [27] in BEAST. Although species-tree analyses are usually performed using multilocus data, inference from a single locus is possible (see details in [26, 27]), and the motivation to use several mitochondrial regions as independent markers is that it can bring some measure of rate heterogeneity that might help to resolve the phylogenetic trees. Additionally is preferable the species tree approach for divergence time estimates because they take into account the gene divergence within the ancestral population, preventing overestimations in their calculations [65].

In the same way as the gene-tree concatenated analysis from above, all individuals were used (128 individuals representing 17 species of Coralliidae), and the same MCMC options, burn-in and calibration point were applied to the species tree. The default options for species tree priors (Yule process) and population size models (piecewise linear and constant root) were used in this analysis.

Species delimitation

Species limits were established using a generalized mixed Yule coalescent (GMYC) model [8, 66]. In brief the GMYC model attempts to identify the species delimitation analyzing the shift in branching rates on a tree that contains multiple samples per species. The GMYC detects the predicted difference in branching rate under two modes of lineage evolution (within and among species), evaluating the point of highest likelihood of the transition [8]. The gmyc function using the R statistical language and the APE library in conjunction with the package "gmyc.pkg.0.9.6.R" was used on the ultrametric concatenated gene tree resulting from the Bayesian analyses to do a single-threshold [8, 66] and a multiple-threshold [5] method.


  1. 1.

    de Queiroz K: Species concepts and species delimitation. Syst Biol. 2007, 56 (6): 879-886. 10.1080/10635150701701083.

    PubMed  Article  Google Scholar

  2. 2.

    Carstens B, Dewey T: Species delimitation using a combined coalescent and information-theoretic approach: an example from North American Myotis bats. Syst Biol. 2010, 59 (4): 400-414. 10.1093/sysbio/syq024.

    PubMed  PubMed Central  Article  Google Scholar

  3. 3.

    Knowles L, Carstens B: Delimiting species without monophyletic gene trees. Syst Biol. 2007, 56 (6): 887-895. 10.1080/10635150701701091.

    PubMed  Article  Google Scholar

  4. 4.

    Lim GS, Balke M, Meier R: Determining species boundaries in a world full of rarity: singletons, species delimitation methods. Syst Biol. 2011, 60: 165-169.

    Google Scholar

  5. 5.

    Monaghan M, Wild R, Elliot M, Fujisawa T, Balke M, Inward D, Lees D, Ranaivosolo R, Eggleton P, Barraclough T: Accelerated species inventory on Madagascar using coalescent-based models of species delineation. Syst Biol. 2009, 58: 298-311. 10.1093/sysbio/syp027.

    PubMed  CAS  Article  Google Scholar

  6. 6.

    Noble D, Qi Y, Fu J: Species delineation using Bayesian model-based assignment tests: a case study using Chinese toad-headed agamas (genus Phrynocephalus). BMC Evol Biol. 2010, 10 (1): 197-10.1186/1471-2148-10-197.

    PubMed  PubMed Central  Article  Google Scholar

  7. 7.

    Pinzón J, LaJeunesse T: Species delimitation of common reef corals in the genus Pocillopora using nucleotide sequence phylogenies, population genetics and symbiosis ecology. Mol Ecol. 2011, 20: 311-325. 10.1111/j.1365-294X.2010.04939.x.

    PubMed  Article  Google Scholar

  8. 8.

    Pons J, Barraclough T, Gomez-Zurita J, Cardoso A, Duran D, Hazell S, Kamoun S, Sumlin W, Vogler A: Sequence-based species delimitation for the DNA taxonomy of undescribed insects. Syst Biol. 2006, 55 (4): 595-609. 10.1080/10635150600852011.

    PubMed  Article  Google Scholar

  9. 9.

    Yang Z, Rannala B: Bayesian species delimitation using multilocus sequence data. Proc Natl Acad Sci. 2010, 107: 9264-9269. 10.1073/pnas.0913022107.

    PubMed  CAS  PubMed Central  Article  Google Scholar

  10. 10.

    Papadopoulou A, Bergsten J, Fujisawa T, Monaghan M, Barraclough T, Vogler A: Speciation and DNA barcodes: testing the effects of dispersal on the formation of discrete sequence clusters. Philosophical Transactions of the Royal Society B. 2008, 363: 2987-2996. 10.1098/rstb.2008.0066.

    Article  Google Scholar

  11. 11.

    Sites J, Marshall J: Operational criteria for delimiting species. Annu Rev Ecol Evol Syst. 2004, 35: 199-227. 10.1146/annurev.ecolsys.35.112202.130128.

    Article  Google Scholar

  12. 12.

    Hausdorf B, Hennig C: Species delimitation using dominant and codominant multilocus markers. Syst Biol. 2010, 59: 491-503. 10.1093/sysbio/syq039.

    PubMed  CAS  Article  Google Scholar

  13. 13.

    Sites J, Marshall J: Delimiting species: a Renaissance issue in systematic biology. Trends Ecol Evol. 2003, 18 (9): 462-470. 10.1016/S0169-5347(03)00184-8.

    Article  Google Scholar

  14. 14.

    Wiens JJ, Penkrot TA: Delimiting species using DNA and morphological variation and discordant species limits in spiny lizards (Sceloporus). Syst Biol. 2002, 51 (1): 69-91. 10.1080/106351502753475880.

    PubMed  Article  Google Scholar

  15. 15.

    Wiens J: Species delimitation: new approaches for discovering diversity. Syst Biol. 2007, 56 (6): 875-878. 10.1080/10635150701748506.

    PubMed  Article  Google Scholar

  16. 16.

    Bayer F: Key to the genera of Octocorallia exclusive of Pennatulacea (Coelenterata: Anthozoa), with diagnoses of new taxa. Proceedings of the Biological Society of Washington. 1981, 94 (3): 902-947.

    Google Scholar

  17. 17.

    Sánchez JA: Systematics of the bubblegum corals (Cnidaria: Octocorallia: Paragorgiidae) with description of new species from New Zealand and the Eastern Pacific. Zootaxa. 2005, 1014: 1-72.

    Google Scholar

  18. 18.

    Sánchez J: A new genus of Atlantic octocorals (Octocorallia: Gorgoniidae): systematics of gorgoniids with asymmetric sclerites. J Nat Hist. 2007, 41: 493-509. 10.1080/00222930701237315.

    Article  Google Scholar

  19. 19.

    Sánchez J: Systematics of the candelabrum gorgonian corals (Eunicea Lamouroux; Plexauridae; Octocorallia; Cnidaria). Zoological J Linnean Soc. 2009, 157 (2): 237-263. 10.1111/j.1096-3642.2008.00515.x.

    Article  Google Scholar

  20. 20.

    Sánchez J, Wirshing H: A field key to the identification of tropical western Atlantic zooxanthellate octocorals (Octocorallia: Cnidaria). Caribbean J Sci. 2005, 41 (3): 508-522.

    Google Scholar

  21. 21.

    Bayer F: Descriptions and redescriptions of the Hawaiian octocorals collected by the US Fish Commission steamer "Albatross" (2. Gorgonacea: Scleraxonia). Pacific Science. 1956, 10 (1): 67-95.

    Google Scholar

  22. 22.

    Cummings M, Neel M, Shaw K: A genealogical approach to quantifying lineage divergence. Evolution. 2008, 62 (9): 2411-2422. 10.1111/j.1558-5646.2008.00442.x.

    PubMed  Article  Google Scholar

  23. 23.

    O'Meara B: New heuristic methods for joint species delimitation and species tree inference. Syst Biol. 2010, 59 (1): 59-73. 10.1093/sysbio/syp077.

    PubMed  Article  Google Scholar

  24. 24.

    Rosenberg N, Nordborg M: Genealogical trees, coalescent theory and the analysis of genetic polymorphisms. Nat Rev Genet. 2002, 3 (5): 380-390. 10.1038/nrg795.

    PubMed  CAS  Article  Google Scholar

  25. 25.

    Degnan J, Rosenberg N: Gene tree discordance, phylogenetic inference and the multispecies coalescent. Trends Ecol Evol. 2009, 24 (6): 332-340. 10.1016/j.tree.2009.01.009.

    PubMed  Article  Google Scholar

  26. 26.

    McCormack J, Heled J, Delaney K, Peterson A, Knowles L: Calibrating divergence times on species trees versus gene trees: implications for speciation history of Aphelocoma jays. Evolution. 2011, 65 (1): 184-202. 10.1111/j.1558-5646.2010.01097.x.

    PubMed  Article  Google Scholar

  27. 27.

    Heled J, Drummond A: Bayesian inference of species trees from multilocus data. Mol Biol Evol. 2010, 27 (3): 570-580. 10.1093/molbev/msp274.

    PubMed  CAS  PubMed Central  Article  Google Scholar

  28. 28.

    Bayer F: Three new species of precious coral (Anthozoa: Gorgonacea, genus Corallium) from Pacific waters. Proceedings of the Biological Society of Washington. 1996, 109 (2): 205-228.

    Google Scholar

  29. 29.

    Bayer F, Cairns S: A new genus of the scleraxonian family Coralliidae (Octocorallia: Gorgonacea). Proceedings of the Biological Society of Washington. 2003, 116 (1): 222-228.

    Google Scholar

  30. 30.

    Bayer F: Contributions to the nomenclature, systematics, and morphology of the Octocorallia. Proceedings of the United States National Museum. 1955, 105: 207-220. 10.5479/si.00963801.105-3357.207.

    Article  Google Scholar

  31. 31.

    Bayer F: The genus Corallium (Gorgonacea: Scleraxonia) in the western North Atlantic Ocean. B Mar Sci. 1964, 14 (3): 465-478.

    Google Scholar

  32. 32.

    Bayer F, Grasshoff M, Verseveldt J: Illustrated trilingual glossary of morphological and anatomical terms applied to Octocorallia. 1983, Leiden: E.J. Brill

    Google Scholar

  33. 33.

    Herrera S, Baco A, Sánchez J: Molecular systematics of the bubblegum coral genera (Paragorgiidae, Octocorallia) and description of a new deep-sea species. Mol Phylogenet Evol. 2009, 55: 123-135.

    PubMed  Article  Google Scholar

  34. 34.

    Sánchez J, McFadden C, France S, Lasker H: Molecular phylogenetic analyses of shallow-water Caribbean octocorals. Mar Biol. 2003, 142 (5): 975-987.

    Google Scholar

  35. 35.

    Uda K, Komeda Y, Koyama H, Koga K, Fujita T, Iwasaki N, Suzuki T: Complete mitochondrial genomes of two Japanese precious corals, Paracorallium japonicum and Corallium konojoi (Cnidaria, Octocorallia, Coralliidae): notable differences in gene arrangement. Gene. 2011, 476: 27-37. 10.1016/j.gene.2011.01.019.

    PubMed  CAS  Article  Google Scholar

  36. 36.

    McFadden C, France S, Sánchez J, Alderslade P: A molecular phylogenetic analysis of the Octocorallia (Cnidaria: Anthozoa) based on mitochondrial protein-coding sequences. Mol Phylogenet Evol. 2006, 41 (3): 513-527. 10.1016/j.ympev.2006.06.010.

    PubMed  CAS  Article  Google Scholar

  37. 37.

    Bramanti L, Magagnini G, Demaio L, Santangelo G: Recruitment, early survival and growth of the Mediterranean red coral (L 1758), a 4-year study. J Exp Mar Biol Ecol. 2005, 314 (1): 69-78. 10.1016/j.jembe.2004.08.029.

    Article  Google Scholar

  38. 38.

    Roark E, Guilderson T, Dunbar R, Ingram B: Radiocarbon-based ages and growth rates of Hawaiian deep-sea corals. Mar Ecol Prog Ser. 2006, 327: 1-14.

    CAS  Article  Google Scholar

  39. 39.

    Grigg R: Resource management of precious corals. Marine Ecology. 1984, 5 (1): 57-74. 10.1111/j.1439-0485.1984.tb00307.x.

    Article  Google Scholar

  40. 40.

    Grigg R: Precious coral fisheries of Hawaii and the US Pacific Islands. Marine Fisheries Review. 1993, 55 (2): 50-60.

    Google Scholar

  41. 41.

    Grigg R: Precious corals in Hawaii: discovery of a new bed and revised management measures for existing beds. Marine Fisheries Review. 2002, 64 (1): 13-20.

    Google Scholar

  42. 42.

    Tsounis G, Rossi S, Grigg R, Santangelo G, Bramanti L, Gili J: The exploitation and conservation of precious corals. Oceanography and Marine Biology: An Annual Review. 2010, 48: 161-212.

    Article  Google Scholar

  43. 43.

    Sanchez J, Aguilar C, Dorado D, Manrique N: Phenotypic plasticity and morphological integration in a marine modular invertebrate. BMC Evol Biol. 2007, 7: 122-10.1186/1471-2148-7-122.

    PubMed  PubMed Central  Article  Google Scholar

  44. 44.

    McFadden C, Benayahu Y, Pante E, Thoma J, Nevarez P, France S: Limitations of mitochondrial gene barcoding in Octocorallia. Mol Ecol Resour. 2011, 11 (1): 19-31. 10.1111/j.1755-0998.2010.02875.x.

    PubMed  CAS  Article  Google Scholar

  45. 45.

    Verseveldt J: Further studies on Octocorallia. Zoologische Mededelingen. 1942, 24: 159-186.

    Google Scholar

  46. 46.

    Gray J: Additional note on Corallium johnsoni. Proceedings of the Zoological Society of London. 1867, 35: 125-127.

    Google Scholar

  47. 47.

    Novo M, Almodóvar A, Fernández R, Trigo D, Díaz-Cosín D, Giribet G: Appearances can be deceptive: different diversification patterns within a group of Mediterranean earthworms (Oligochaeta, Hormogastridae). Mol Ecol. in press

  48. 48.

    Novo M, Almodóvar A, Fernández R, Trigo D, Díaz-Cosín D: Cryptic speciation of hormogastrid earthworms revealed by mitochondrial and nuclear data. Mol Phylogenet Evol. 2010, 56: 507-512. 10.1016/j.ympev.2010.04.010.

    PubMed  Article  Google Scholar

  49. 49.

    Jablonski D: Species selection: theory and data. Annu Rev Ecol Evol Syst. 2008, 39 (1): 501-524. 10.1146/annurev.ecolsys.39.110707.173510.

    Article  Google Scholar

  50. 50.

    Carstens B, Knowles L: Estimating species phylogeny from gene-tree probabilities despite incomplete lineage sorting: an example from Melanoplus grasshoppers. Syst Biol. 2007, 56 (3): 400-411. 10.1080/10635150701405560.

    PubMed  Article  Google Scholar

  51. 51.

    Shaffer H, Thomson R: Delimiting species in recent radiations. Syst Biol. 2007, 56 (6): 896-906. 10.1080/10635150701772563.

    PubMed  CAS  Article  Google Scholar

  52. 52.

    France S, Rosel P, Agenbroad J, Mullineaux L, Kocher T: DNA sequence variation of mitochondrial large-subunit rRNA provides support for a two-subclass organization of the Anthozoa (Cnidaria). Mol Mar Biol Biotechnol. 1996, 5 (1): 15-28.

    PubMed  CAS  Google Scholar

  53. 53.

    Edgar R: MUSCLE: multiple sequence alignment with high accuracy and high throughput. Nucleic Acids Res. 2004, 32 (5): 1792-1797. 10.1093/nar/gkh340.

    PubMed  CAS  PubMed Central  Article  Google Scholar

  54. 54.

    Miller M, Pfeiffer W, Schwartz T: Creating the CIPRES Science Gateway for inference of large phylogenetic trees. Proceedings of the Gateway Computing Environments Workshop (GCE). 2010, New Orleans, 1-8.

    Google Scholar

  55. 55.

    Posada D: jModelTest: phylogenetic model averaging. Mol Biol Evol. 2008, 25 (7): 1253-1256. 10.1093/molbev/msn083.

    PubMed  CAS  Article  Google Scholar

  56. 56.

    Drummond A, Rambaut A: BEAST: Bayesian evolutionary analysis by sampling trees. BMC Evol Biol. 2007, 7 (1): 214-10.1186/1471-2148-7-214.

    PubMed  PubMed Central  Article  Google Scholar

  57. 57.

    Drummond AJ, Suchard MA, Xie D, Rambaut A: Bayesian phylogenetics with BEAUti and the BEAST 1.7. Mol Biol Evol. 2012, 29: 1969-1973. 10.1093/molbev/mss075.

    PubMed  CAS  PubMed Central  Article  Google Scholar

  58. 58.

    Rambaut A, Drummond A: Tracer v1.5. 2009, Available from

    Google Scholar

  59. 59.

    Schlagintweit F, Gawlick H: The incertae sedis Carpathoporella Dragastan, 1995, from the Lower Cretaceous of Albania: skeletal elements (sclerites, internodes/branches, holdfasts) of colonial octocorals. Facies. 2009, 55 (4): 553-573. 10.1007/s10347-009-0185-5.

    Article  Google Scholar

  60. 60.

    Vertino A, Zibrowius H, Rocca M, Taviani M: Fossil Coralliidae in the Mediterranean basin. Proceedings of the international workshop on red coral science, management, and trade: lessons from the mediterranean. Edited by: Bussoletti E, Cottingham D, Bruckner A, Roberts G, Sandulli R. 2010, Silver Spring: NOAA Technical Memorandum CRCP-13, 233-

    Google Scholar

  61. 61.

    Sauquet H, Ho SYW, Gandolfo MA, Jordan GJ, Wilf P, Cantrill DJ, Bayly MJ, Bromham L, Brown GK, Carpenter RJ, et al: Testing the impact of calibration on molecular divergence times using a fossil-rich group: the case of nothofagus (fagales). Syst Biol. 2012, 61 (2): 289-313. 10.1093/sysbio/syr116.

    PubMed  Article  Google Scholar

  62. 62.

    Warnock RCM, Yang Z, Donoghue PCJ: Exploring uncertainty in the calibration of the molecular clock. Biol Lett. 2012, 8 (1): 156-159. 10.1098/rsbl.2011.0710.

    PubMed  PubMed Central  Article  Google Scholar

  63. 63.

    Stamatakis A: RAxML-VI-HPC: maximum likelihood-based phylogenetic analyses with thousands of taxa and mixed models. Bioinformatics. 2006, 22 (21): 2688-2690. 10.1093/bioinformatics/btl446.

    PubMed  CAS  Article  Google Scholar

  64. 64.

    Stamatakis A, Hoover P, Rougemont J: A fast bootstrapping algorithm for the RAxML Web-servers. Syst Biol. 2008, 57 (5): 758-771. 10.1080/10635150802429642.

    PubMed  Article  Google Scholar

  65. 65.

    Edwards S, Beerli P: Perspective: gene divergence, population divergence, and the variance in coalescence time in phylogeographic studies. Evolution. 2000, 54: 1839-1854.

    PubMed  CAS  Google Scholar

  66. 66.

    Fontaneto D, Kaya M, Herniou E, Barraclough T: Extreme levels of hidden diversity in microscopic animals (Rotifera) revealed by DNA taxonomy. Mol Phylogenet Evol. 2009, 53 (1): 182-189. 10.1016/j.ympev.2009.04.011.

    PubMed  CAS  Article  Google Scholar

Download references


Funding toward completion of this work was provided by the Facultad de Ciencias, Universidad de los Andes, Systematics Research Fund (The Systematics Association and The Linnaean Society, UK) and a short-term visiting fellowship from Smithsonian Institution. Colleagues who donated or sampled specimens are especially acknowledged: Stephen Cairns (NMNH), Amy Baco (Florida State University), Santiago Herrera (WHOI-MIT), Luisa Dueñas (UniAndes), Di Tracey (NIWA, NIWA Invertebrate Collection, New Zealand Ministry of Fisheries observer program and CCALMR-Antarctica), Kareen Schnabel and Sadie Mills (NIWA), Rick Weber (Te Papa Tongarewa, New Zealand), Phil Alderslade (CSIRO), Peter Etnoyer (NOAA) and Tzu Hsuan (Academia Sinica, Taiwan). Jeff Hunt and Robin Turner (NMNH) provided invaluable assistance for the laboratory methods in the Analytical lab. Diana Baez for patience and help with the sub-sampling of the collection, digestion of sclerites and SEM of the NMNH specimens.

Author information



Corresponding author

Correspondence to Juan A Sánchez.

Additional information

Competing interests

The authors declare that they have no competing interests.

Authors’ contributions

NEA participated in the design of the study and coordination, secured funding, carried out the molecular sequencing, the phylogenetic analysis and drafted the manuscript. GG obtained samples of C. rubrum, additional sequences of Coralliidae and helped to critically revise the manuscript. JAS conceived the study, obtained samples of Coralliidae, participated in its design and coordination and helped to write the manuscript. The authors read and approved the final manuscript.

Electronic supplementary material

Sequences and specimens of coralliids used in this study.

Additional file 1: Acronyms as follows: National Museum of Natural History of the Smithsonian Institution, USA (USNM); The National Institute of Water and Atmospheric Research, New Zealand (NIWA); CSIRO Tasmania (TMH); Academia Sinica, Taiwan (ASIZ). Sequences not generated in this study are in bold. Source: 1Herrera et al. 2009, 2Uda et al. 2011, 3Calderon et al. 2006, 4Tinti et al. (unpublished), 5France S.C. & Thoma (unpublished). (XLSX 46 KB)

Authors’ original submitted files for images

Rights and permissions

Open Access This article is published under license to BioMed Central Ltd. This is an Open Access article is distributed under the terms of the Creative Commons Attribution License ( ), which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

Reprints and Permissions

About this article

Cite this article

Ardila, N.E., Giribet, G. & Sánchez, J.A. A time-calibrated molecular phylogeny of the precious corals: reconciling discrepancies in the taxonomic classification and insights into their evolutionary history. BMC Evol Biol 12, 246 (2012).
