Fig. 2 | BMC Ecology and Evolution

Fig. 2

From: Growth genes are implicated in the evolutionary divergence of sympatric piscivorous and insectivorous rainbow trout (Oncorhynchus mykiss)

Fig. 2

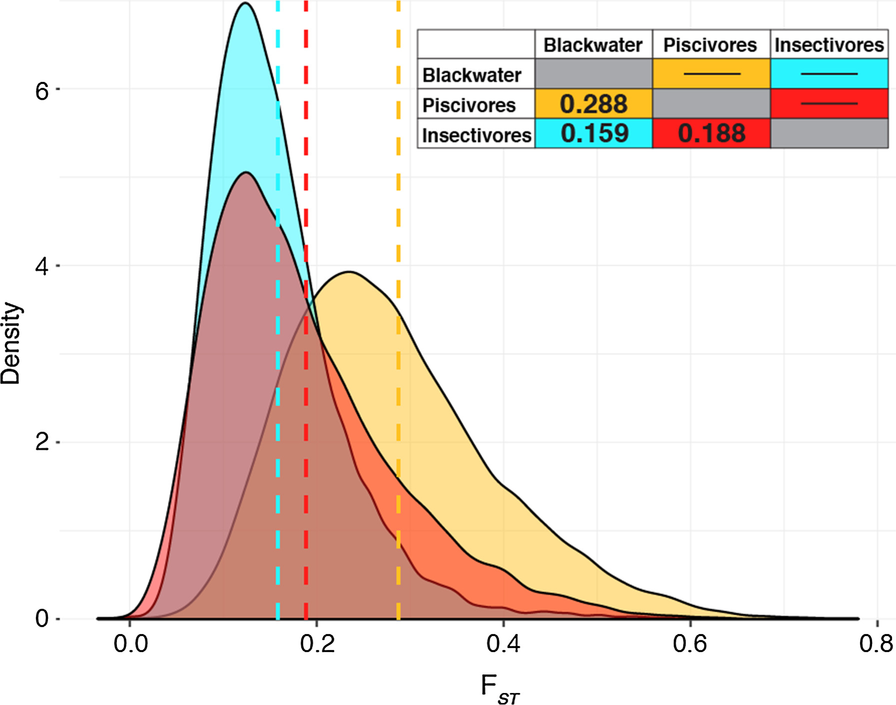

Distributions of 100 kbp non-overlapping window Weir and Cockerham \(F_{\text{ST}}\) estimates, 19,512 in total, between all pairs of rainbow trout groups. Orange represents Blackwater insectivores–Kootenay Lake piscivores, blue is Blackwater insectivores–Kootenay Lake insectivores, and red is Kootenay Lake insectivores–Kootenay Lake piscivores. The table shows mean values of each comparison, which are drawn with dashed lines in the graph

Back to article page
